蝶形球閥

產品詳情


應用

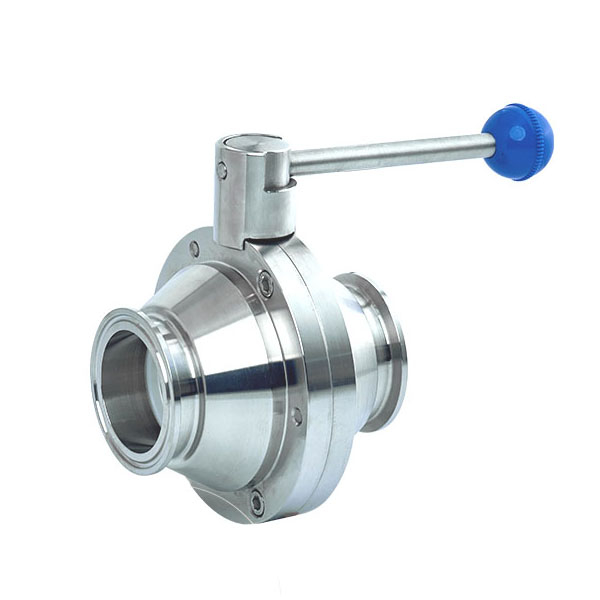

QF7蝶式球閥是一種裝卸快捷、清洗方便的閥門。主要應用于食品、飲料加工、以及制藥和化學工業等領域。


技術參數

可提供EN 10204 3.1B證書。

采用進口密封材料,所有密封材質均符合FDA 177.2600

工作溫度: -20~+135℃(EPDM/PTFE)

滅菌溫度: 150℃(max.20min)

工作壓力: 1.0Mpa(10bar)

介質: 水、飲料、乳品、藥劑等

連接方式: 3A/DIN/SMS/ISO(焊接.快裝.螺紋.法蘭)






技術參數 Technique Parameter

金屬材質Material

與產品接觸的部件 Contact product parts

304L/316L(1.4307/1.4404) 鍛 造 304L/316L(1.4307/1.4404) Forged

不與產品接觸的部件 Non-contact product parts

304(1.4301)

可提供EN 10204 3.1B證書 Provide EN 10204 3.1B certificate

密封材質Seal material

Standard

PTFE/EPDM

Option

FPM/PTFE,HNBR/PTFE,SILICONE/PTFE

采用進口密封材料,所有密封材質均符合FDA 177.2600 All seal materil meet FDA177.2600

溫度Temperature

連續工作溫度 Running working temperature

-20~+135℃(EPDM/PTFE)

滅菌溫度 Sterilization temperature

150℃(max20min)

Pressure

工作壓力 Working pressure

10bar

表面處理Surface treatment

內表面處理 Internal surface

Ra≤0.8μm

外表面處理 External surface

1.6μm

連接Connection

連接標準 Connection standard

焊接端: DIN 11850 系列2 Welded end: DIN 11850 series2

焊接端: Inch管徑標準 Welded end: INCH pipe standard

連接方式: 焊接.螺紋.快裝.法蘭等 Connection method: welding、thread、clamp、flange

螺紋碟式


DN

d

D

L1

L

H

H1

H2

W

W1

B

DN25

26

90

40

80

70

230

160

120.5

AT63

Rd52×1/6"

DN40

38

100

50

100

76

235

180

120.5

AT75

Rd65×1/6"

DN50

50

116

52.5

105

95

270

195

156.3

AT83

Rd78×1/6"

DN65

66

142

62.5

125

108

-

220

156.3

AT92

Rd95×1/6"

DN80

81

172

70

140

125

-

260

220

AT105

Rd110×1/4"

DN100

100

200

85

170

155

-

300

220

AT125

Rd130×1/4"
