技術參數 Technical Parameters |
金屬材質Metal material | 與產品接觸的零部件 Contact with the product components | CF8 / CF3M（304/316L）鑄造 / 鍛造 CF8 / CF3M（304/316L）Casting / Forging | 可提供材質檢測報告單 Can provide material inspection report |
不與產品接觸的零部件 Materal No contact with the product components | 304 (1.4301) |
密封材質Sealing material | 標配 Standard | 國產優質聚四氟乙烯 PTFE |
|
選配 Option | 進口大金/3M | 符合FDA177.2600/3A/USP食品、飲用水、微生物的基本要求。 In accordance with FDA177.2600/3A/USP for Food, drinking water and microorganisms and other health requirements |
壓力Pressure | 工作壓力 Working pressure | 0~16bar |
控制氣源壓力 Control air pressure | 3~8bar |
溫度Temperature | 連續工作溫度 Continual working temperature | PTFE:(-20 ~ +130℃ ) 大金M111：（-25 ~ +150℃） |
滅菌溫度 Sterilization temperature | 150℃ ( Max 20min) |
表面處理Surface treatment | 內表面處理 Inside surface treatment | Ra≥0.4-0.8μm |
外表面處理 Surface treatment | Ra≥0.8-1.6μm |
連接方式Connection | 焊接端管徑 The diameter welding | 焊接口：DIN 11850 - 2與 11850-1 / SMS / 3A / ISO 等系列 Welding connection: DIN 11850-2 with 11850-1 / SMS / 3A / ISO Series etc |
連接方式：焊接、快裝、外螺紋、內螺紋、法蘭等 Connection mode: welding, clamp, male and female, flange, etc |

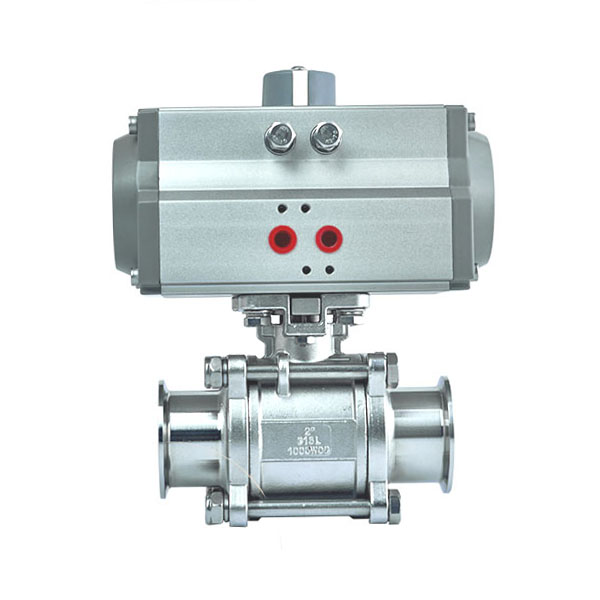

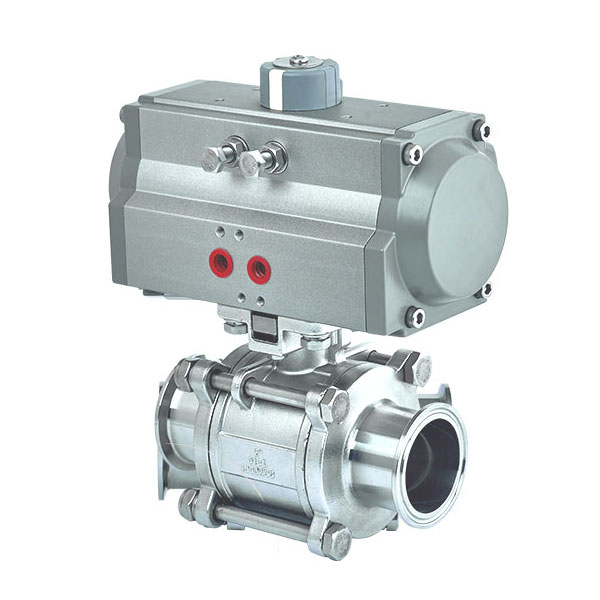

氣動控制Pneumatic control | 氣動頭及固定支架 Pneumatic head and fixed bracket |
